C&I Energy Storage Solutions
POWER CESS 1000 US SERIES

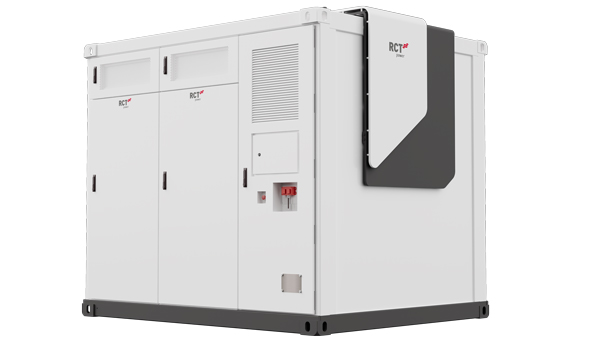

INDUSTRIAL CONTAINER ENERGY STORAGE SYSTEM
● manage energy sources and tariffs
● increase self-sufficiency
POWER CESS 1000 US SERIES
RELIABLE POWER SUPPLY
● 466-932 kWh outdoor-rated container storage system

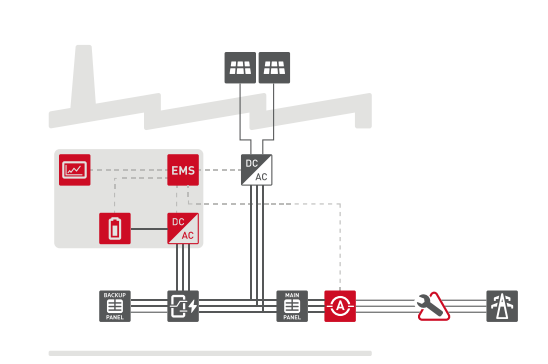

● AC coupled system
SAFE TECHNOLOGY
● Multi-level protection
● Lithium iron phosphate (LFP) chemistry provides highest level of safety, thermal stability and reliability
● Preinstalled liquid cooled RCT Power Battery modules
● Integrated multi-level battery management system (BMS) assures optimized and well-balanced power storage
ENERGY MANAGEMENT SYSTEM
● Back-up power
● Peak shaving
● Micro-grids
● Demand mitigation
● Rate arbitration
SMART & HIGH EFFICIENCY
● Highly efficient AC/DC inverter
● Smart energy monitoring cloud platform for remote monitoring and control
● Intelligent charging and reduction of peak loads
● High degree of performance
● Multi-parallel system supported
| POWER CESS | 900 class 2 hour system | 700 class 2 hour system | 450 class 2 hour system | ||||||||
| 932-500-02D | 699-375-02D | 466-250-02D | |||||||||
| BATTERY | |||||||||||
| Nominal capacity | 932 kWh | 699kWh | 466kWh | ||||||||
| Battery capacity per Pack | 46.592kWh | ||||||||||
| Battery technology | LiFePO₄ | ||||||||||
| Charge/discharge rate | ≤0.5P | ||||||||||
| Battery pack structure | 1P52S | ||||||||||
| BMS | integrated | ||||||||||
| Cooling Method | Liquid cooling | ||||||||||
| Rated DC voltage | 832Vdc | ||||||||||
| DC voltage range | 715~928Vdc | ||||||||||
| INVERTER | |||||||||||
| Rated AC power | 500 kW | 375 kW | 250 kW | ||||||||
| DC-side operating voltage range | 700-1000Vdc | ||||||||||
| Rated AC current | 600 A | 450 A | 300 A | ||||||||
| AC rated voltage | 480 Vac | ||||||||||
| Rated AC line frequency | 60 Hz | ||||||||||
| Power factor | 0.99@rated AC power | ||||||||||
| Cooling Method | Liquid | ||||||||||
| ENERGY MANAGMENT SYSTEM | |||||||||||
| EMS Molecule Systems mOS(optional) | |||||||||||
| COMMUNICATION | |||||||||||
| Touch panel | 15.6"industrial standard | ||||||||||
| Communication protocol | Modbus TCP/RTU,CAN | ||||||||||
| Cloud | yes | ||||||||||
| App | yes | ||||||||||
| OPERATION | |||||||||||
| Noise Level | ≤75dB@1m | ||||||||||
| Relative operating humidity | 0-95%RH,no-condensation | ||||||||||
| Operating temperature range | -40F.…+133 F(-20℃~+45℃) | ||||||||||
| Operating altitude | ≤6500 ft | ||||||||||
| DIMENSIONS | |||||||||||
| Dimensions(W×H×D) | 118"×102"×96" | ||||||||||
| Weight | aprox25,000 Ibs | aprox 21,000 Ibs | aprox 17,000 Ibs | ||||||||
| SAFTEY/STANDARDS | |||||||||||
| Protection | IP54/NEMA 3R | ||||||||||
| Corrosion-proof grade | C4/C5 | ||||||||||
| Safety features | a.Flammable/explosive gas detection b.Flammable/explosive gas exhaust c.Smoke detection d.Temperature detection | e.Aerosol fire extinguish f.Siren and strobe alarm g.Emergency stop button h.Dry pipe and sprinkle | |||||||||
| Certification | UN 38.3,NFPA 69,UL 1973,UL 60730,UL9540A,UL | 9540 | |||||||||
| WARRANTY | |||||||||||
| Warranty | 10 years | ||||||||||
