C&I Energy Storage Solutions

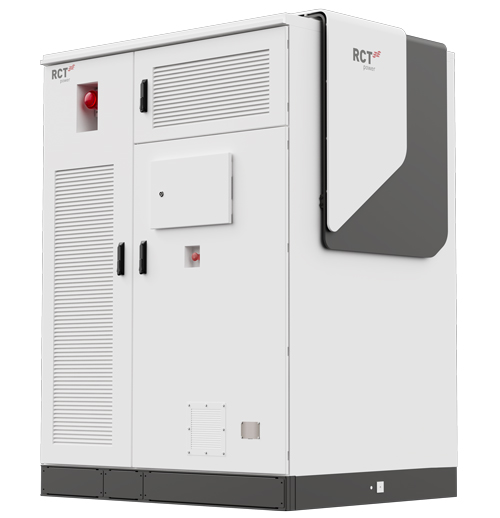

POWER CESS 200 US
INDUSTRIAL CABINET ENERGY STORAGE SYSTEM
● high efficiency
● store and trade energy
● manage energy sources and tariffs
● increase self-sufficiency
RELIABLE POWER SUPPLY
● 233 kWh outdoor-rated cabinet storage system
● All-in-one solution
SAFE TECHNOLOGY
● Multi-level protection
● Lithium iron phosphate (LFP) chemistry provides highest level of safety, thermal stability and reliability
● Preinstalled liquid cooled RCT Power Battery modules
● Integrated multi-level battery management system (BMS) assures optimized and well-balanced power storage

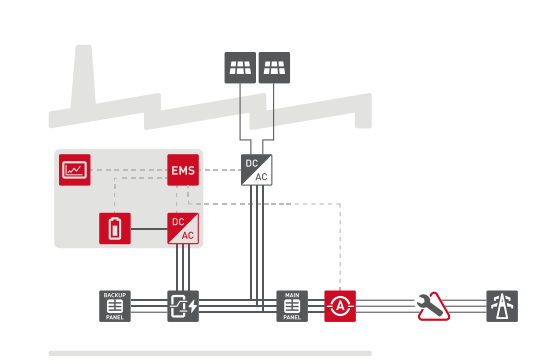

ENERGY MANAGEMENT SYSTEM
● Back-up power
● Peak shaving
● Micro-grids
● Demand mitigation
● Load arbitration
● Self-consumption
SMART & HIGH EFFICIENCY
● Highly efficient AC/DC inverter
● Smart energy monitoring cloud platform for remote monitoring and control
● Intelligent charging and reduction of peak loads
● High degree of performance
● Multi-parallel system supported
| BATTERY | |
| Nominal capacity | 233 kWh |
| Battery technology | LFP |
| Charge / discharge rate | > 0.5 P (constant power) |
| Cooling method | liquid cooling |
| BMS | integrated |
| Rated DC voltage | 832 V |
| DC voltage range | 715 Vdc - 928 Vdc |
| INVERTER | |
| Operating voltage range (DC connection) | 700 Vdc - 950 Vdc |
| Rated DC power | 125 kW |
| Rated AC power | 125 kW |
| Rated AC current | 150 A |
| Rated AC line frequency | 60 Hz |
| Rated AC line voltage | 480 Vac |
| Cooling method | liquid cooling |
| ENERGY MANAGEMENT SYSTEM | |
| EMS | Molecule Systems mOS (optional) |
| COMMUNICATION | |
| Communication protocol | Modbus TCP/RTU/CAN |
| Touch panel | 15.6 " industrial standard |
| Cloud | Yes |
| App | Yes |
| OPERATION | |
| Noise Level | ≤ 75dB@1m |
| Relative operating humidity | 0~95 %RH, no-condensation |
| Operating temperature range | -4 °F ~ +113 °F (-20 °C ~ +45 °C) |
| Operating altitude | ≤ 6500 ft |
| DIMENSIONS (TOTAL) | |
| Dimensions (W x H x D) | 63 x 87 x 51 inches |
| Weight | approx 7055 lbs |
| SAFTEY/STANDARDS | |
| Protection | IP54/NEMA 3R |
| Corosion-proof grade | C4 |
| Saety features | a.Flammable/explosive gas detection b.Flammable/explosive gas exhaust c.Smoke detection d.Temperature detection e.Aerosol fire extinguish f.Siren and strobe alarm g.Emergency stop button h.Dry pipe and sprinkle |
| Certification | UN 38.3,NFPA69,UL1973,UL60730,UL9540A,UL 9540 |
| WARRANTY | |
| Warranty | 10 years |
