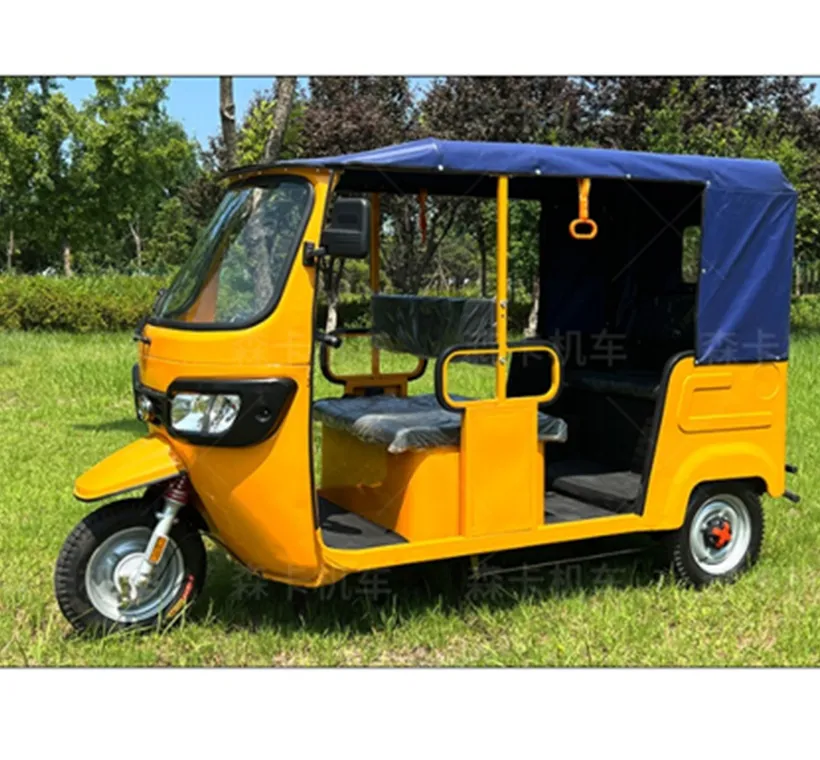

Electric Tricycle
Product Details
| Vehicle size (L*W*H) | 3000mmx1250mmx1790mm(including bumper) |
| Vehicle weight | 300 kg (Battery not included) |
| wheelbase | 2270mm |
| Tread | 1000mm |
| Minimum ground clearance | 280mm |
| Loading Capacity | 800kg |
| Passenger Capacity | 7 people |
| speed | Maximuim 50km/h |
| Motor power | 3000w |
| Lamps | Headlight+Turn Signal+Driving Light+Reversing Light |
| Workbench + instrument | Dedicated |
| Wiper Motor | Pure copper motor |
| Tire size | Front wheel 400-12, Back wheel 400-12 |
| Wheels | slron wheels (galvanizated) |
| Electronic Control System | 36-tube intelligent dual-mode controller |
| Controlling Method | Twist-handle |
| Driving Method | Direction handle |
| Braking Method | Mechanical drum brake |
| Wiring Arrangement of Assembly Wiring Hamess | High and low voltage dual lines: high temperature line high voltage16mm²，low voltage 1.5mm² |
| Front shock absorber | Direct plug hydraulic shock absorber |
| Drive axle | 220 drum brake integrated rear axle |
| Rear Suspension | Support arm spring structure |
| Tarpaulin | Composite oil canvas (off white) |
| Frame material | One-piece curved beam structure, the main beam adopts 40mm*60mm*4mm rectangular tube, the secondary beam adopts 40mm*60mm*3mm rectangular tube and is treated with cathodic electrophoresis for corrosion and rust prevention. |
| Carriage structure | The front and rear panels are integrally stamped and detachable,making assembly simple and convenient |
