30kW 3 Phase Hybrid Inverter

Product Details

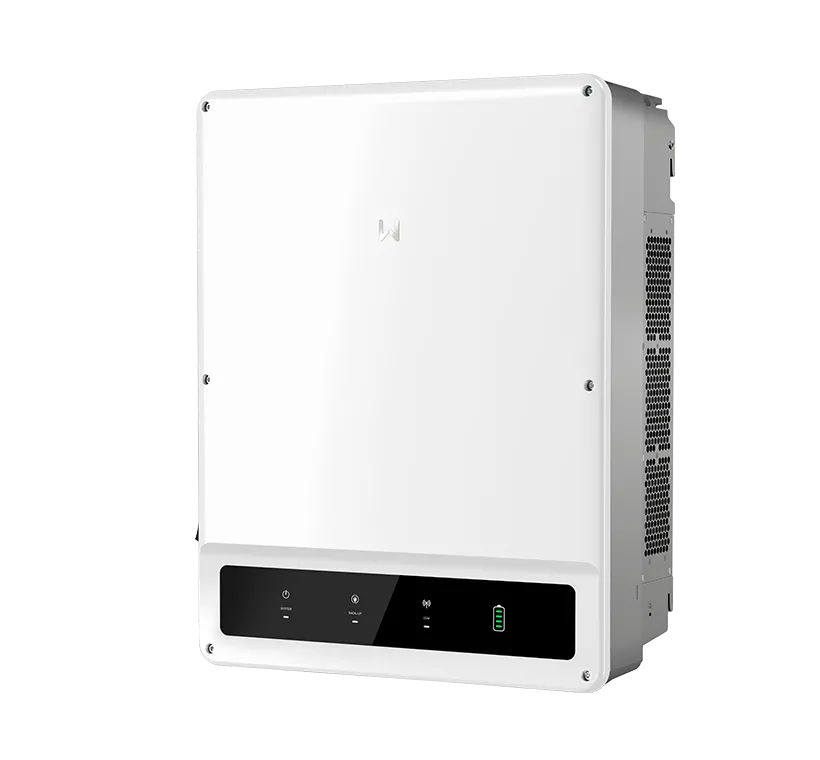

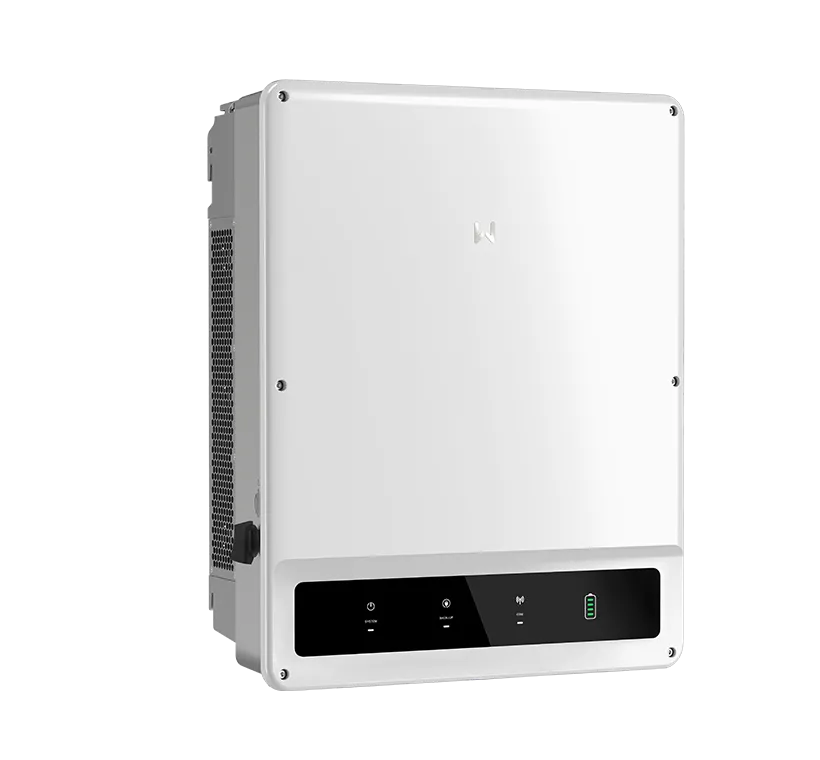

The GoodWe ET 20-30K Series is a three-phase high-voltage hybrid solar inverter covering 15kW, 20kW, 25kW, 29.9kW, and 30kW output capacities — purpose-built for large residential rooftop systems and light commercial & industrial (C&I) installations. As a key component in grid-interactive energy storage systems, the ET Series enables B2B buyers to deliver robust self-consumption solutions with intelligent load management, peak shaving, and seamless battery backup.

C&D Emerging Energy provides this product direct from factory with full CE, TÜV, UL, JET, and CEC certifications — ready for European, Australian, and North American markets. OEM orders and container-load wholesale inquiries are welcome

Feature

Scalable Power for Diverse Project Sizes

Available in five output ratings — 15kW, 20kW, 25kW, 29.9kW, and 30kW — the ET Series allows distributors and EPC contractors to serve a wide project range with a single product line. The 150% PV input over-sizing ratio maximizes energy harvest even on partially shaded or sub-optimally oriented arrays.

Peak Shaving — Reduce Commercial Energy Costs

The integrated peak shaving function intelligently balances battery discharge and grid import to flatten the demand curve, directly reducing the "extra grid demand" charges that commercial sites incur during peak hours. This is a primary buying trigger for C&I project developers and energy management system integrators.

Dry Contact for Heat Pump & Large Load Control

A built-in dry contact output allows direct integration with heat pumps, EV chargers, pool pumps, and other large loads — scheduling them to run during surplus solar generation periods. This reduces reliance on grid power and adds real value for end users, making the ET Series easy to position in premium residential markets.

High-Voltage Battery Compatibility

Compatible with a wide range of high-voltage (HV) lithium battery systems including GoodWe Lynx Home E and other leading HV battery brands. Communication via CAN/RS485 ensures precise state-of-charge management and extended battery lifespan — a key qualification criterion for sophisticated end customers.

Up to 3 Independent MPPTs — Flexible PV String Design

Three independent MPPT inputs with up to 15A per string give installers maximum flexibility when designing PV arrays across multiple roof orientations or tilt angles — reducing system design time and installation cost.

Application

Large Residential Systems (15–20kW): High-consumption households with EV charging, heat pumps, or pool heating. The ET 15K/20K provides ample backup capacity through the HV battery while managing multiple large loads via dry contact scheduling. Suitable for European and Australian premium residential markets.

Small Commercial & Light Industrial (25–30kW): Retail stores, small factories, office buildings, and light manufacturing facilities with demand charge exposure. The 30kW model's peak shaving capability directly reduces peak demand fees on time-of-use tariff structures — a compelling ROI argument for commercial buyers.

Multi-Unit Residential & Apartment Buildings: The three-phase output is compatible with common area loads in apartment complexes, making the ET Series suitable for shared-energy or virtual net metering applications in markets where these models are gaining regulatory support.

Specification

Parameter	GW15K-ET	GW20K-ET	GW25K-ET	GW29.9K-ET	GW30K-ET
DC INPUT
Rated AC Output Power	15,000 W	20,000 W	25,000 W	29,900 W	30,000 W
Max. PV Input Power ①	22,500 W	30,000 W	37,500 W	44,850 W	45,000 W
Max. System Voltage ②	1000 V (950 V operating)
No. of MPPTs	Up to 3
Max. DC Input Current	15 A per string
PV Over-sizing Ratio	Up to 150%
AC OUTPUT — GRID
Phase / Grid Voltage	Three-phase / 380 V – 400 V ③
Nominal Output Current (380 V) ④	22.7 A	30.3 A	37.9 A	45.3 A	45.5 A
Max. AC Output to Grid ⑧	25.0 A	33.3 A	41.7 A	49.8 A	50.0 A
BACKUP OUTPUT
Max. Backup Apparent Power ⑨	22.5 kVA	30 kVA	33 kVA	33 kVA	33 kVA
Max. AC Current from Grid (Backup) ⑩	34 A	45 A	50 A	50 A	50 A
BATTERY INTERFACE
Battery Type	High Voltage (HV) Lithium — CAN / RS485
Compatible Models	GoodWe Lynx Home E & major HV lithium brands
GENERAL
Ingress Protection	IP65
Surge Protection	Type II SPD (DC side)
Arc Fault Protection	AFCI optional
Smart Features	Peak shaving · Dry contact load control · Self-consumption optimization
Certifications	CE · TÜV · UL · JET · CEC

*1: In Australia, for most of the PV module, the max. Input power can achieve 2Pn, Such as the max. input power of GW15K-ET can achieve 30000W. Besides, Max. Input Power, not continuous for 1.5*normal power.

*2: For 1000V system, Maximum operating voltage is 950V.

*3: According to the local grid regulation.

*4: Output Voltage Range: phase voltage.

*5: Can be reached only if PV and battery power is enough.

*6: DC Switch: GHX6-55P (for Australia).

*7: No Back-up Output.

*8: For 380V grid, the Max. AC Current Output to Utility Grid is 25.0A for GW15K-ET, 33.3A for GW20K-ET, 41.7A for GW25K-ET, 49.8A for GW29.9K-ET, 50.0A for GW30K-ET.

*9: When the load is connected to the inverter's backup port, the Max. Apparent Power from Utility Grid can reach to 22.5K for GW15K-ET, 30K for GW20K-ET, 33K for GW25K-ET, 33K for GW29.9K-ET, and 33K for GW30K-ET respectively.

*10: When the load is connected to the inverter's backup port, the Max. AC Current From Utility Grid can reach to 34A for GW15K-ET, 45A for GW20K-ET, 50A for GW25K-ET, 50A for GW29.9K-ET, and 50A for GW30K-ET respectively.

*11: For Austria, Max. Output Power (W) is 15K for GW15K-ET, 20K for GW20K-ET, 25K for GW25K-ET, 29.9K for GW29.9K-ET, and 30K for GW30K-ET.

*: For 380V grid, the Nominal Output Current is 22.7A for GW15K-ET, 30.3A for GW20K-ET, 37.9A for GW25K-ET, 45.3A for GW29.9K-ET, 45.5A for GW30K-ET.

*: Please visit GoodWe website for the latest certificates.

*: All pictures shown are for reference only. Actual appearance may vary.

FAQ

Q: What is the difference between the 29.9kW and 30kW models?

A: The GW29.9K-ET is specifically designed for markets (such as Austria and parts of Germany) where local grid regulations cap single inverter output just below 30kW to avoid additional grid-connection requirements. If you are sourcing for the European market, please confirm local grid regulations with your installer or grid operator before selecting a model.

Q: Can the ET 30kW hybrid inverter operate in off-grid mode?

A: The ET Series is primarily a grid-interactive hybrid inverter. When grid power is unavailable, it can supply backup power to loads connected to the backup port using stored battery energy or simultaneous solar generation. Full off-grid island mode for higher capacities is available with the ET 40–50K + STS configuration.

Q: What battery brands are compatible with the ET 20-30K series?

A: The ET Series is compatible with high-voltage lithium battery systems that communicate via CAN or RS485 protocols, including GoodWe Lynx Home E and a wide range of third-party HV battery brands. Contact us with your preferred battery specification for compatibility confirmation.

Q: Is OEM or white-label customization available for the ET Series?

A: Yes. C&D Emerging Energy supports OEM packaging and labeling for qualified B2B customers. Minimum order quantities and customization scope can be discussed with our sales team via the inquiry form below.

Q: Which markets are the certifications valid for?

<spanA: CE and TÜV cover European markets; UL covers the United States and Canada; JET covers Japan; CEC covers Australia. All certifications are current — please visit GoodWe's website for the latest certificate documentation.
