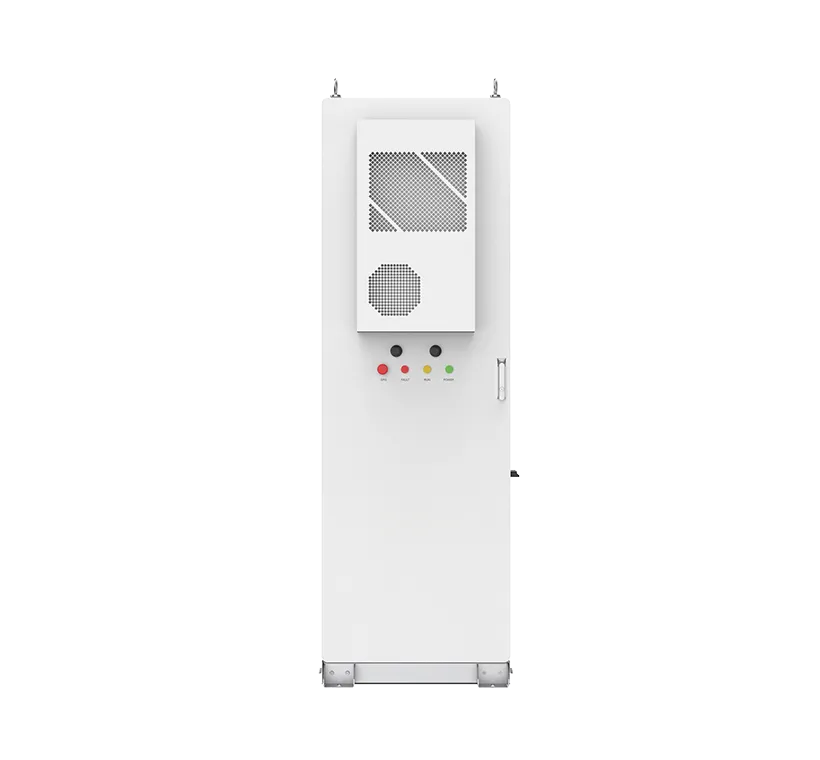

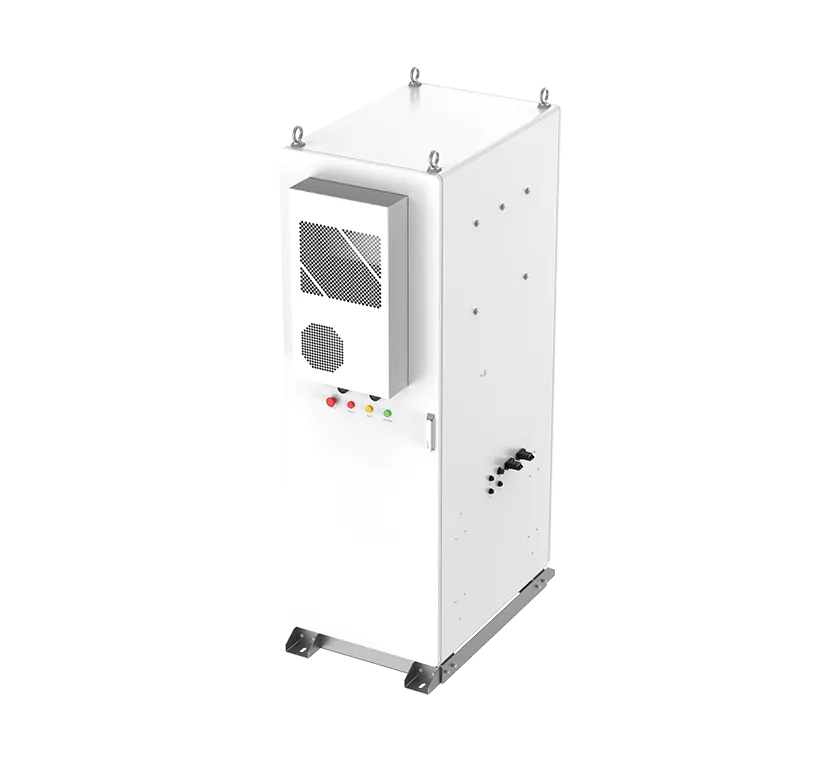

C & I Air-cooling Cabinet
C & I Air-cooling Cabinet
C & I Air-cooling Cabinet
C & I Air-cooling Cabinet

C & I Air-cooling Cabinet

Inquire Now

Product Details

C & I Air-cooling Cabinet Parameters

Model No.INEP5-125kW/215kWh
Grid/DG side parameters
Rated power125kW
Maximum output power137kW
Grid voltage400V AC
Frequency range50~60Hz
Rated AC current180A @ 45°C
Can it operate off gridYes
Other parameters
Grid connection type3W+PE or 3W+N+PE
Off-grid conversion20ms
Diesel engine starting modeI/O
Topological modeDC_Bus
PCS peak efficiency99.73%
Overload capacity110%, 1min; 120%, 10s
Fire fighting systemPerfluorohexane/Aerosol
Battery system
System energy215.04kWh
Battery typeLFP-280Ah
Nominal voltage768V
Operating voltage range672V~864V
Max charge and discharge current140A
PV system
Maximum input power110kW
Maximum input current300A
MPPT channels4
MPPT power per channel/maximum power30kW/35kW
Start-up voltage/Tracking voltage rangeDC 200V/DC 250V~650V
System Parameters
Cooling methodForced air cooling
Noise/Protection level<65dB/PS4
Operating humidity/Operating temperature0-95% (no condensation)/-20°C~+60°C
Human-machine interfaceHMI/Cloud Platform
Installation methodOutdoor-cabinet
Overall weight≤2800kg
Dimension (WDH)160012002200mm
Communication methodRS485, CAN, Ethernet, dry contact
Altitude4000m,<2000m Power reduced
Battery product certificationIEC 62619, IEC 63056, IEC 60730, IEC/EN 61000, IEC 62477
PCS certification standardsIEC 62477-1 & IEC 61000-6-2, VDE-AR-N 4105, NRS 097-21-1: 2017, GB/T34126-2017, GB/T34133-2017
Full container certificationUN38.3


Off Grid Switching Cabinet Parameters

Model No.2 parallel machines5 parallel machines
Grid--DG side parameters
Rated power250kW625kW
Maximum output power274kW685kW
Grid voltage400V AC400V AC
Frequency range50~60Hz50~60Hz
Rated AC current360A @ 45°C900A @ 45°C
Other parameters
Grid connection type3W+N+PE3W+N+PE
Diesel engine starting modeI/OI/O
Overload capacity110%, 1min; 120%, 10s110%, 1min; 120%, 10s
STS parameters
Rated power500kW1250kW
Nominal voltageAC400VAC400V
Frequency range50~60Hz50~60Hz
Off-grid conversion20ms20ms
Switching deviceThyristorThyristor
Load side parameters
Rated power250kW625kW
Maximum output power274kW685kW
Grid voltage400V AC400V AC
Frequency range50~60Hz50~60Hz
Rated AC current360A @ 45°C900A @ 45°C
System Parameters
Cooling methodForced air coolingForced air cooling
Noise/Protection level<65dB/PS4<65dB/PS4
Operating humidity/Operating temperature0-95% (no condensation)/-20°C~+60°C0-95% (no condensation)/-20°C~+60°C
Human-machine interfaceHMI/Cloud PlatformHMI/Cloud Platform
Installation methodOutdoor-cabinetOutdoor-cabinet
Communication methodRS485, CAN, Ethernet, dry contactRS485, CAN, Ethernet, dry contact
Altitude4000m,<2000m Power reduced4000m,<2000m P


Note: This specification is only suitable for Vietnam Market.
