An off-grid inverter — also called a standalone inverter or independent inverter — is a power conversion device that operates entirely without connection to the public utility grid. It converts DC electricity stored in batteries (charged by solar panels, wind turbines, or a generator) into AC electricity for powering appliances, equipment, and electrical systems at the point of use.

The defining characteristic of an off-grid inverter is self-sufficiency. Unlike a grid-tie inverter, which must detect a live grid signal to function, a standalone off-grid inverter generates its own AC reference waveform internally. This means it continues powering loads through night, cloudy days, and grid outages — the grid is simply irrelevant to its operation.

This independence makes off-grid inverters the foundational hardware component for any project where grid power is unavailable, prohibitively expensive to connect, or deliberately avoided for energy autonomy reasons. From a remote mountain cabin in Southeast Asia to a telecom tower in Sub-Saharan Africa to a solar-powered irrigation system in rural South America — if there is no grid, there must be an off-grid inverter.

How Does an Off-Grid Inverter Work?

The operating logic of a well-designed off-grid inverter manages three simultaneous functions in real time: generating AC power for loads, managing battery charging from solar and AC sources, and protecting the battery bank from damaging overcharge or over-discharge conditions.

Stage 1 — Solar PV Input & MPPT HarvestingSolar panels connect to the inverter's built-in MPPT solar charge controller. The MPPT algorithm continuously sweeps the panel array's voltage-current curve to identify and lock onto the maximum power point — extracting the most available solar energy under all irradiance and temperature conditions. High-quality off-grid inverters achieve MPPT efficiencies above 99%, minimizing energy losses from panel to battery.

Stage 2 — Battery Charging & State ManagementHarvested solar energy flows into the battery bank through a controlled charging profile (typically bulk → absorption → float for lead-acid; CC-CV for lithium). The inverter's BMS-linked charge controller prevents overcharge. When solar production exceeds both load demand and battery charging requirements simultaneously, excess energy is dissipated or redirected based on system configuration.

Stage 3 — DC-to-AC Inversion for LoadsThe inverter's power electronics stage converts battery DC voltage (typically 24V or 48V) into a stable, pure sine wave AC output (220V/230V or 110V/120V at 50Hz/60Hz). This AC waveform powers all connected loads. The output quality of a pure sine wave is identical to utility grid power — fully compatible with sensitive electronics, variable-speed motors, and medical equipment.

Stage 4 — Priority & Charging Mode ManagementWhen an AC source (generator or grid) is available and configured, the off-grid inverter can switch to charging the battery from that source while simultaneously powering loads — acting as a transfer switch and charger in one unit. Intelligent priority logic determines whether solar, AC mains, or battery is the preferred energy source at any moment.

Stage 5 — Protection & System MonitoringThe inverter continuously monitors battery voltage, output current, internal temperature, and load levels. Hardware protection circuits trigger automatically for over-voltage, under-voltage, over-current, short circuit, and overtemperature conditions — protecting both the inverter and the battery bank from damage.

Pure Sine Wave vs. Modified Sine Wave: Why It Matters

Every off-grid inverter in C&D's range produces a pure sine wave AC output. Understanding the difference between pure sine wave and modified sine wave is important context for buyers specifying or recommending inverters.

Pure Sine Wave OutputThe AC waveform produced is a smooth, continuous sinusoidal curve — identical in quality to utility grid power. This is the only waveform type that is fully compatible with all AC loads, including:

• Sensitive electronics (laptops, medical equipment, audio equipment)

• Variable-speed motor drives (modern refrigerators, air conditioners, pumps)

• Inductive loads (transformers, electric motors)

• Any load with a power supply that expects clean AC input

All C&D off-grid inverters output pure sine wave AC.

Modified Sine Wave OutputA stepped approximation of a sinusoidal waveform. Cheaper to produce, but causes inefficiency, overheating, and potential damage to sensitive electronics and induction-motor loads. Acceptable only for simple resistive loads (basic lighting, simple heating elements). Not recommended for any professional or commercial application.

If your distributor customers are sourcing inverters for residential or commercial end-users with modern appliances, pure sine wave is non-negotiable. Modified sine wave inverters have no place in a professional installation.

 FAQ

Q: Can an off-grid inverter work without batteries?

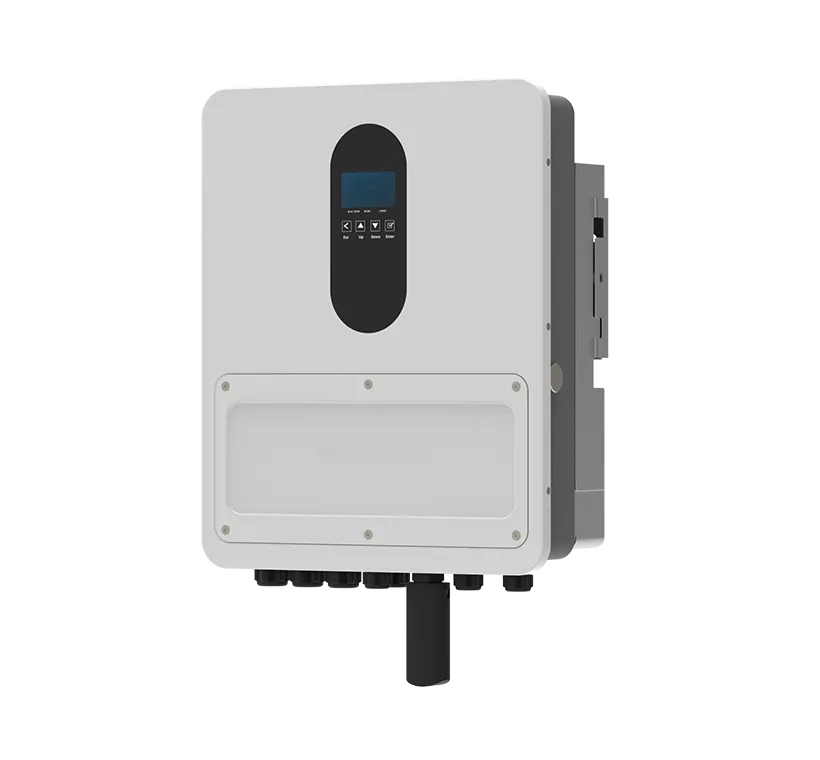

A: Our 4–6kW series supports a battery-free operating mode — powering loads directly from solar panels during daylight hours. This reduces initial system cost for projects where battery investment can be phased. However, without batteries, the system cannot power loads at night or during extended low-irradiance periods. For 24/7 standalone power, battery storage is required.

Q: What is the difference between an off-grid inverter and a hybrid inverter?

A: An off-grid inverter operates entirely independently of the grid — it creates its own AC reference internally and does not require a grid connection. A hybrid inverter connects to both the grid (for charging and export) and batteries (for backup). If there is no grid connection available or required, an off-grid inverter is the correct choice. See our full comparison table in Section 7.

Q: Can multiple off-grid inverters be connected in parallel?

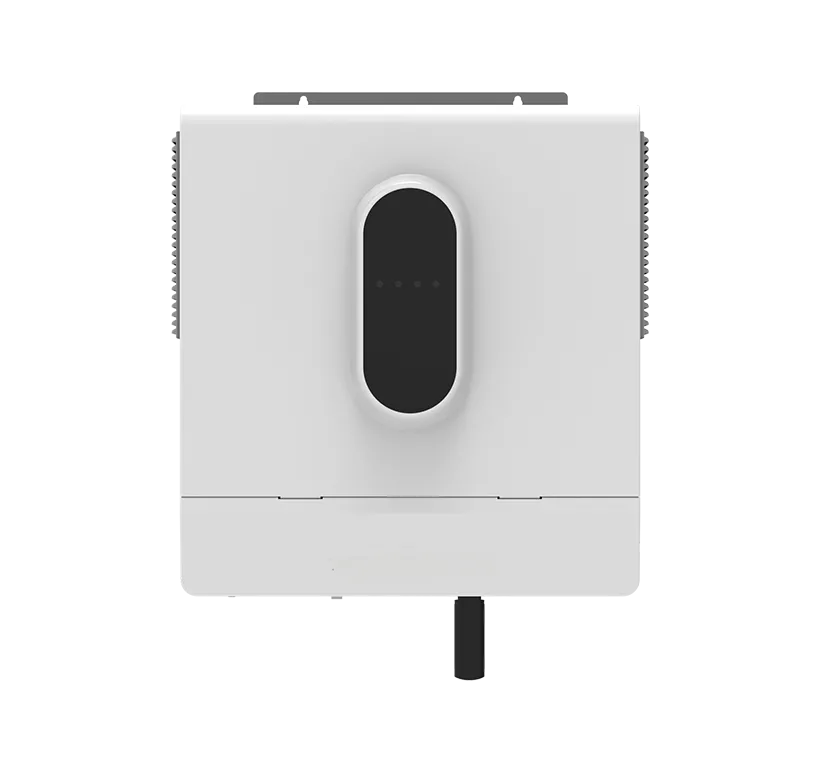

A: Yes. C&D's 8–11kW series supports parallel connection of up to 6 single-phase units (48kW–66kW total) or 9 three-phase units (72kW–99kW total). Parallel operation allows a single inverter model to scale to commercial power levels without replacing infrastructure.

Q: What battery chemistries are compatible with C&D's off-grid inverters?

A: Both series support lead-acid batteries (AGM, gel, flooded) and lithium-ion (LiFePO4) batteries. The 8–11kW series includes dual activation paths for lithium batteries — both AC and PV inputs can wake a lithium battery from standby mode. C&D's own stackable and rack-mounted LiFePO4 batteries are validated for direct integration.
