Off-grid Inverter

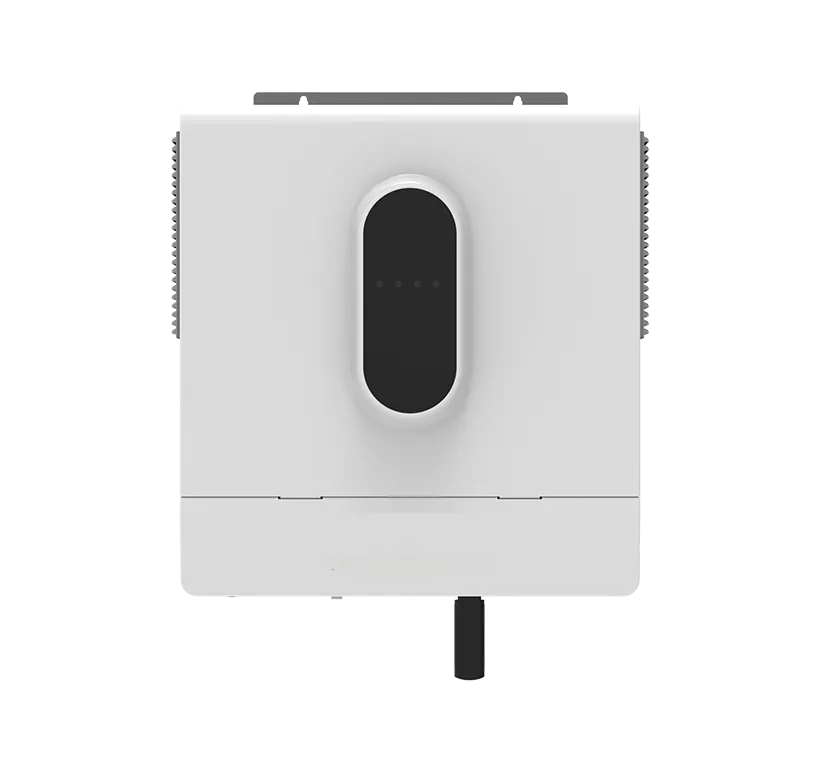

8kw 11kw Off-Grid Hybrid Inverter
Features
● Built-in dual MPPT tracking circuits, with a maximum MPPT input power of 1.5 times the rated power.
● Each MPPT channel supports a maximum input current of 27A, allowing for multiple strings of photovoltaic panels connected in parallel.
● Dual AC outputs with intelligent load management.
● Supports parallel connection of up to 6 single-phase inverters or 9 three-phase inverters in a grid configuration.
● Both AC and PV inputs can activate the lithium battery.
● Wide grid voltage adaptation range of 90-280Vac.
● Minimum MPPT operating voltage of 60Vdc.
● Comprehensive hardware protection.
● 2-year warranty / 3-year extended warranty (optional) / 5-year service.
Product Details
PULSE S2 Product Specifications
| Model | 8kW | 11kW | |
| Battery Data | |||
| Battery Type | Lithium-ion &Lead-acid | ||
| Rated Battery Voltage(Vdc) | 48 | ||
| Battery Voltage Range (Vdc) | 40~60 | ||
| Max.Charge/Discharge Current (A) | 120/160 | 150/220 | |
| Forced Wake-up by PV | YES | ||
| PV Input | |||
| Max.Input Power(W) | 2x6000 | 2x8250 | |
| Max.Input Voltage(Vdc) | 500 | ||
| Rated Input Voltage (Vdc) | 370 | ||
| MPPT Voltage Range(Vdc) | 60~450 | ||
| No.Of MPPT/Strings Per MPPT | 2/2 | ||
| Max Input Current Per MPPT(A) | 27 | ||
| Max.Short Circuit Current Per MPPT(A) | 35A | ||
| Grid Input | |||
| Rated Grid Voltage (Vac) | 220/230/240±5% | ||
| Voltage Input Range(Vac) | 90~280 | ||
| Rated Grid Frequency(Hz) | 50/60 | ||
| Max Input Current(A) | 50 | 60 | |
| Total Harmonic Distortion(THDi) | <3%(of nominal power) | ||
| Backup Data | |||
| Rated Output Power(W) | 8000 | 11000 | |
| Rated Output Curent(A) | 35 | 48 | |
| Rated Output Frequency(Hz) | 50/60±0.1% | ||
| Overload Capability | 10s@105%～120%;5s@121%～200%;100ms@>200% | ||
| Switch Time(ms) | 10msfor Computer Equipment,20ms for Household Equipment | ||
| Total Harmonic Distortion (THDv) | <3% | ||
| Efficiency | |||
| Max.Efficiency | 97.0% | ||
| MPPT Tracking Efficiency | 99.9% | ||
| Protection | |||
| Integrated | DC Polarity Reverse Connection Protection,AC Output Overcurrent Protection, Thermal Protection,AC Output Overvoltage Protection,AC Output Short Circuit Protection,DC Component Monitoring,Overvoltage Load Drop Protection,Power Network Monitoring,Earth Fault Detection,Surge protection level | ||
| Surge Protection | TYPE II(DC),TYPE II(AC) | ||
| Over Voltage Category | OVCII(DC),OVCⅢ(AC) | ||
| General Data | |||
| Operating Temperature(℃) | -10~+55 | ||
| Dimensions [W*H*D](mm) | 420*450*105 | ||
| Weight (kg) | 15.5 | ||
| Inverter Topology | Non-lsolated | ||
| Cooling | Internal Fan | ||
| Altitude(m) | ≤3000 | ||
| Protection Level | IP21 | ||
| Communication | RS232/RS485/CAN/Dry contact/External battery NTC/Parallel communication /WIFI(optional) | ||
| Warranty | 2 Years | ||
| Standard | |||
| Safety Standards | IEC 62109-1:2010;EN62109-1:2010;IEC62109-2:2011;EN62109-2:2011 | ||
| EMC Standards | EN IEC 61000-6-1:2019;EN IEC61000-6-3:2021;EN IEC 61000-3-11:2019;EN61000-3-12:2011 | ||
| Efficiency Standard | IEC61683:1999 | ||
