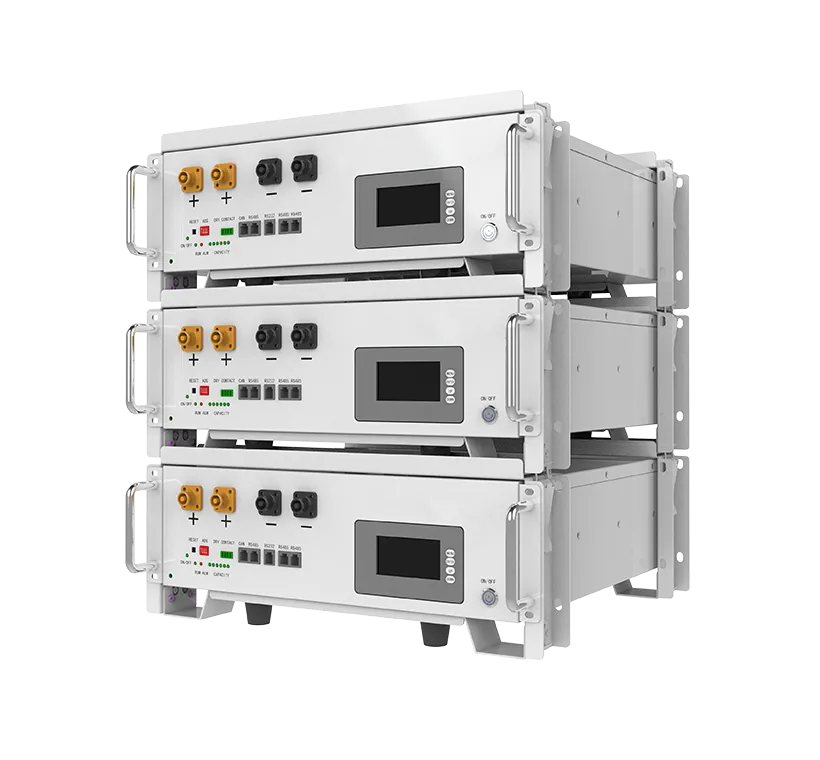

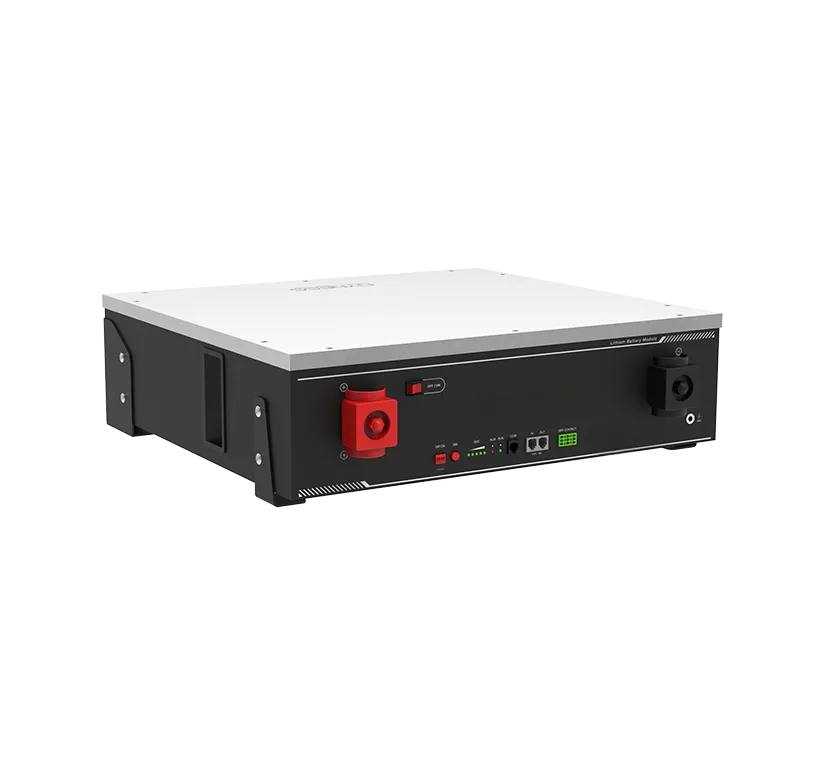

DL5.0C

DL5.0C is designed for residential and small commercial applications, with up to 50 units in parallel and an energy range from 5.12 kWh to 256 kWh. It supports 1C discharge rate. With high cycle times and a long lifespan, it ensures worry-free electricity consumption.

Inquire Now

Product Details

Model	DL5.0C
Battery Type	LiFePO₄
Nominal Battery Energy	5.12 kWh
Nominal Capacity	100Ah
Nominal Voltage	51.2V
Operating Voltage	44.8-57.6V
Recommended Charge & Discharge C Rate	0.5C
Maximum Discharge C Rate	1C
Recommended Charge/Discharge Current	50A
Max. Charge/Discharge Current	Charge 75A Discharge 100A
Peak Discharge Current	110A(15s)
Depth of Discharge (DOD)	90%
Net Weight	49.9kg
DimensionW/D/H	558545150 mm
Charging Temp. Range	0--55°C/-20--55°C (with heating function)
Discharging Temp. Range	-20--55°C
Communication	CAN/RS485/RS232
Cycle Life *	>8000 Cycles/ 7 Years
Protection Level	IP20
WIFI Module	Optional
Expansion **	Up to 50 units in parallel
Certification & Safety Standard	UN38.3/CE-EMC/IEC62619/CEI-021/GOST-R
Compatible Inverters	Solis/Deye/Lupoower/Voltronic/Hoymiles/Growatt/Goodwe/SMA/Victron/Ingeteam/Delios/SAJ/APS etc.

Test conditions: 0.2C Charging & Discharging, @25°C, 90% DOD

** World batteries are mixed with the new version, the quantity of new version batteries: Qty(new)=50-Qty(old)*2

Note: This specification is only suitable for Vietnam Market.

Advantage

Flexible Expansion

Up to 50 units in parallel. 5.12kWh—256kWh capacity
1C Discharge

Simultaneously supplying power to multiple loads, no need to worry about power outages
Automatic Self-heating

-20°C to 55°C operating temperature (optional)
Easy Installation

Support wall-mounted, floor-mounted, stacked and rack-mounted installations, high space utilization
Long-term Reliability

LFP cells, 8000+ cycles, 7 years warranty
All-round Safety

Short-circuit lockout, surge-resistant, safe and reliable
