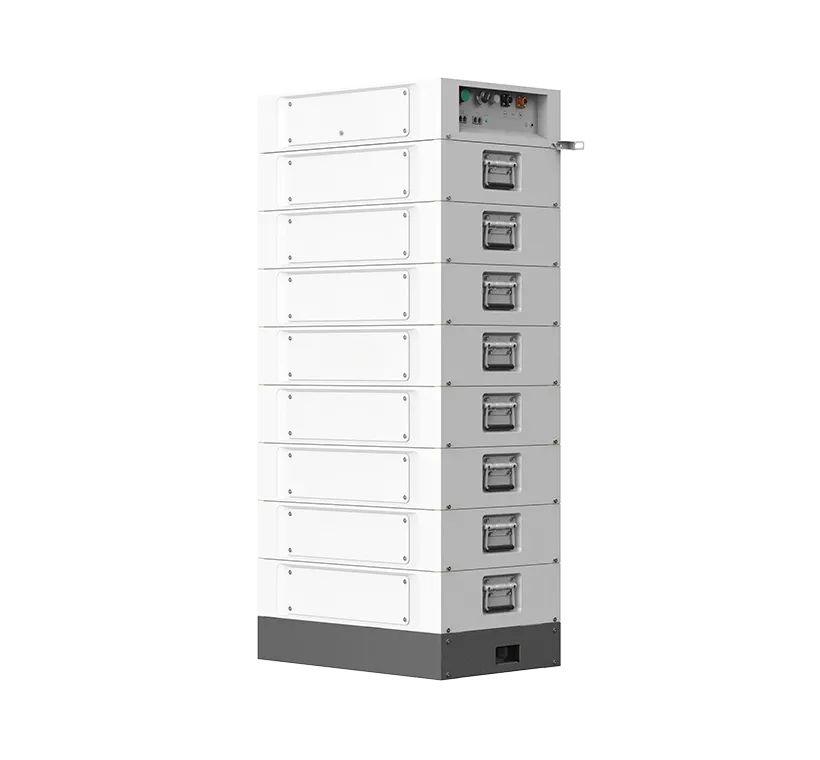

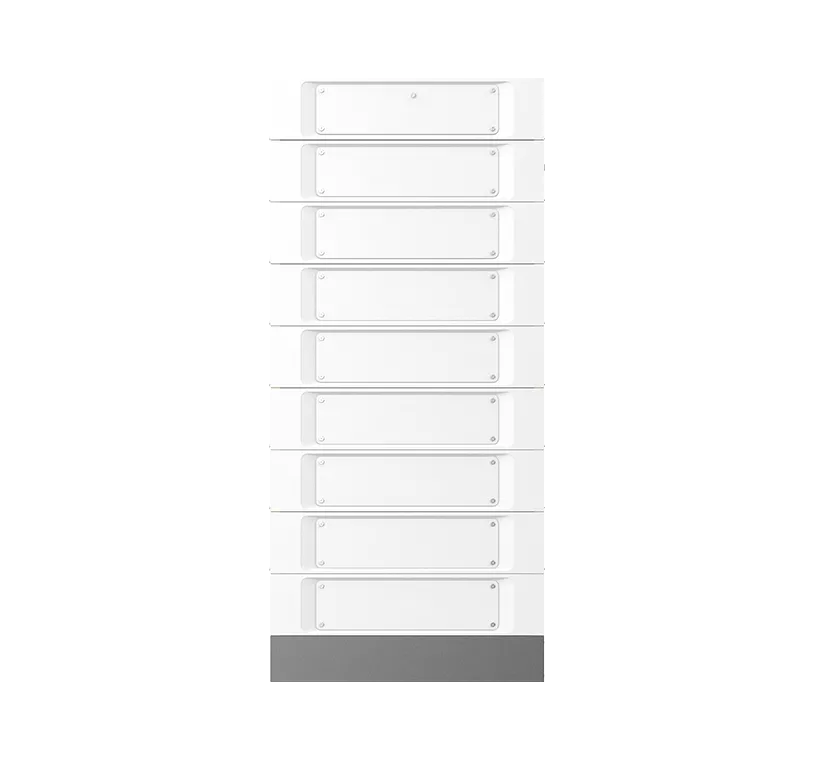

STACK100

Stack100 is suitable for residential and small commercial and industrial scenarios.Rackless and stackable design is easy to plug and play. lt supports 12 clusters inparallel with a maximum capacity of 921kWh and supports 1C charge/discharge.

Inquire Now

Product Details

Model	STACK100
Battery Type	LiFePO4
Module Voltage/Capacity	51.2V/100Ah
Single Module Weight	47Kg
System Modules Serial Number	3~15
System Energy Range	15.36-76.8kWh
Operating Voltage	134-864V
Recommended Charge/Discharge Current	50A (0.5C)
Max.Charge/Discharge Current	100A (1C)
Peak Discharge Current(2min 25°C)	125A(1.25C)
Depth of Discharge	95%
Communication	CAN/RS485
Cycle Life	28000 cycles /10 Years
Max. Single Cluster Dimension[WDH](mm)	5913901700mm-11 module
Charging Temp. Range	0~55℃C
Discharging Temp. Range	-20~55°C
Protection Level	IP20
Fire Protection System	Built-in aerosol fire extinguisher
Installation method	Stack type
Cooling method	Forced wind cooling
WiFi Module	Built-in WlFl module; APP OTA function
Certification & Safety Standard	CE-EMC/CE-RED/IEC62619/IEC63056/IEC62477/IEC62040/UN38.3
Compatible Inverters	Solis/Deye/SOLINTEG/Growatt/Goodwe/MEGAREVO/SAJ/Sinexcel/ATESS/Hoymiles etc.

*Test conditions: 0.2C Charging & Discharging. @25°C, 95% DOD

Note: This specification is only suitable for Vietnam Market.

Advantage

Flexible Expansion

Up to 12 units in parallel,15KWh--921KWh capacity
Ultra Safe

Intelligent fire extinguishingsystem, react within 5 seconds
1C Rate

Suitable for grid frequency regulation,charging stations and other scenarios,cost saving
Easy Installation

0 wiring, rackless free stacking plug-and-play, one cluster installation in 30min
Long-term Reliability

LFP cells, 8000+ cycles, 0 decay in 3 years, 10 years long warranty
Module Mixing

Free mixing of modules within three years
