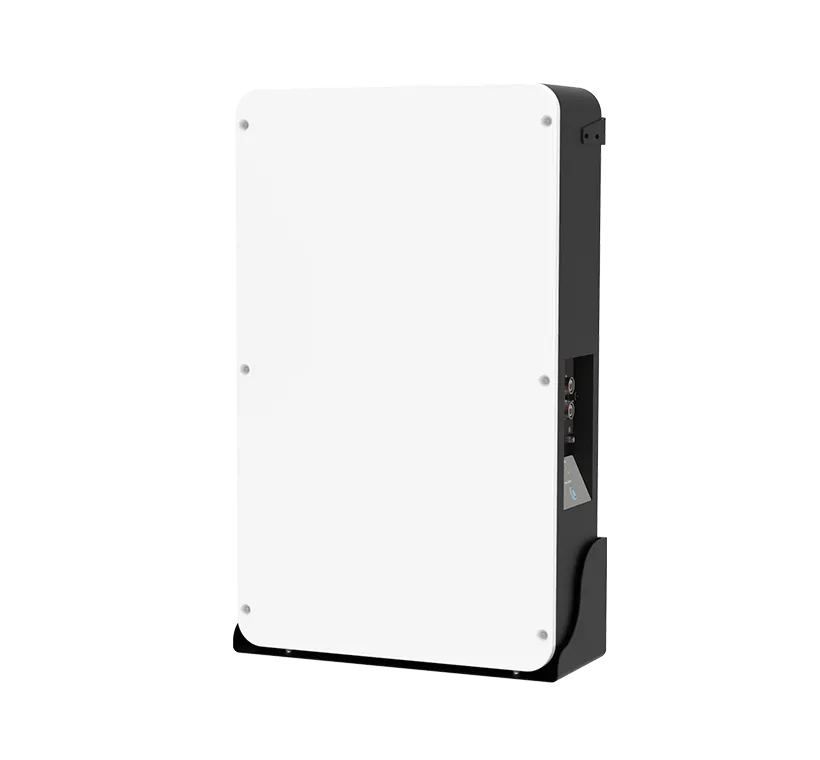

Powerbox Pro

Powerbox Pro is a low-voltage product designed for household energy storage scenarios, supporting up to 50 units in parallel and a 10.24kWh—512kWh energy coverage. High protection level, high safety performance, easy installation, and stylish design to make it perfectly fit for the modern home.

Next Product Inquire Now

Product Details

Model	Powerbox Pro
Battery Type	LiFePO₄
Nominal Battery Energy	10.24 kWh
Operating Voltage	44.8-57.6V
Nominal Voltage	51.2V
Nominal Capacity	200Ah
Nominal Power	512kW
Peak Power	10.24kW
Recommended Charge & Discharge C Rate	0.5C
Recommended Charge/Discharge Current	100A
Recommended Depth of Discharge (DOD)	90%
Net Weight	103kg
Dimension[W/D/H]	555210928 mm
Charging Temp. Range	0--55°C
Discharging Temp. Range	-20--55°C
Communication	CAN/RS485
WiFi Module	Optional
Cycle Life *	>6000 Cycles
Protection Level	IP65
Expansion **	Up to 50 units in parallel(This version is for production after September 2024)
Certification & Safety Standard	UN38.3/CE-EMC/IEC62619/IEC62040/UKCA/CEC
Compatible Inverters	Solis/Deye/Lupoower/Voltronic/Hoymiles/Growatt/Goodwe/SMA/Victron/Ingeteam/Delios/SAJ/APS etc.

* Test conditions: 0.2C Charging & Discharging, @25°C, 90% DOD

** World batteries are mixed with the new version, the quantity of new version batteries: Qty(new)=50-Qty(old)*2

Note: This specification is only suitable for Vietnam Market.

Advantage

Flexible Expansion

Up to 50 units in parallel. 10.24kWh—512kWh capacity
Easy Installation

Support wall-mounted, floor-mounted installations, high space utilization
IP65 Protection

Fearless of outdoor installation, strong environmental adaptability
Battery Equalization

Supports for mixing modules under different SOC to ensure battery life
All-round Safety

Short-circuit lockout, surge-resistant, safe and reliable
